Drying · Carina Dryer with Tilting

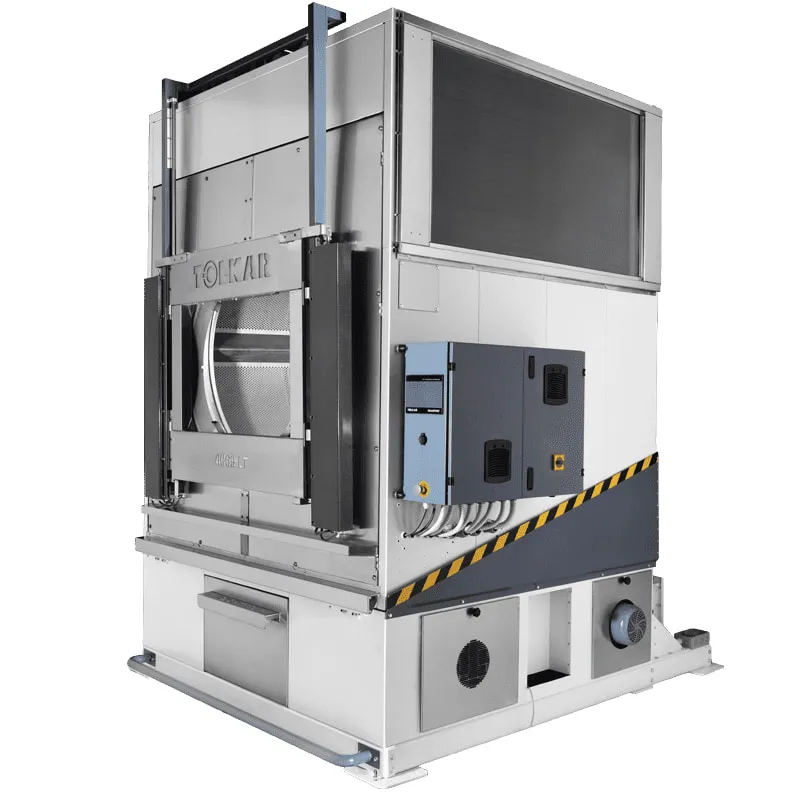

Carina Dryer with Tilting
Forward/back tilting body for fast, ergonomic loading and unloading of heavy 110–250 kg loads.
Technical Specifications
| Heating Type | Steam / Gas |
|---|---|
| Capacity 1/20–1/15 (kg) | 110 / 145 (243–320 lb) |
| Drum Volume (lt) | 2.200 (581 gal) |
| Drum Motor Power (Kw) | 3 |
| Fan Motor Power (Kw) | 4 x 1,1 / 2 x 3 |
| Electric Heating Power (Kw) | - |
| Steam Consumption (Kg/Hour) | 160 (353 lb) |
| Gas Heat Power (Kcal/Hour) | 99.000 |
| Air Flow (m³/Hour) | 12.800 / 6.400 |
| Width (mm) | 1.988 / 1.945 |
| Depth (mm) | 2.293 / 2.300 |
| Height (mm) | 2.671 / 2.315 |
| Tilted Height (mm) | 2.698 / 3.300 |
| Weight (Kg) | 1.500 (3,307 lb) |
Features
- Forward tilting for easy unloading
- Inverter-controlled adjustable drum speed
- Humidity-controlled drying
- Stainless steel serpentines — resist high pressure at 10 Bar
- PLC controlled, 7" touch screen panel
Options
- Heat Recovery System — saves 20–25% drying time & energy
- Smarteye — centralized control & data acquisition
