Feeding & Folding · Folders

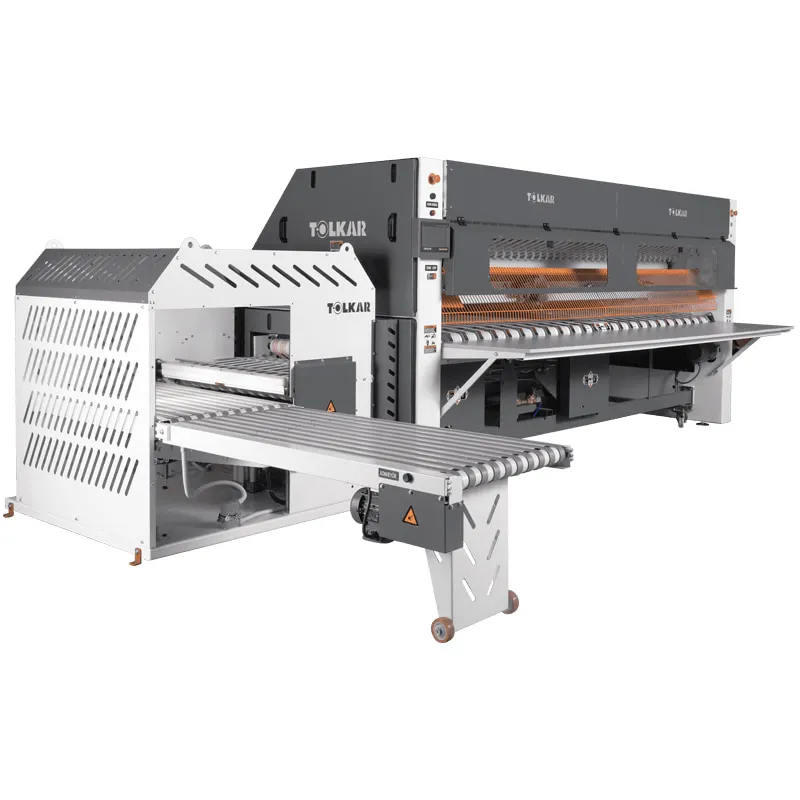

Virgo Linen Folding
Towel and linen folding machines with primary and cross folding, automatic counting and stacking.
Technical Specifications
| Folding Capacity (Pcs/Hour) | 1.800 |
|---|---|
| Working Speed (m/min) | 12 – 60 adjustable |
| Folding Dimensions (cm) | 40 x 40 – 300 x 350 |
| Motor Power (Kw) | 3 |
| Primary / Cross Folding | 2 primary / 3 cross |
| Width (mm) | 3.710 (5.034) |
| Depth (mm) | 3.894 |
| Height (mm) | 1.757 |
| Weight (Kg) | 1.750 (3,858 lb) |
Features
- PLC controlled, 7" touch screen panel
- Automatically folds and splits all towel groups
- Folding with air blast
- Height-adjustable input conveyor & double output flap
- Multi-lane split input conveyor
- Primary and cross folding
- Tolkar Ultimate Control System — remote access, USB transfer, 100 recipes, full reporting
Options
- Smarteye — centralized control & data acquisition
